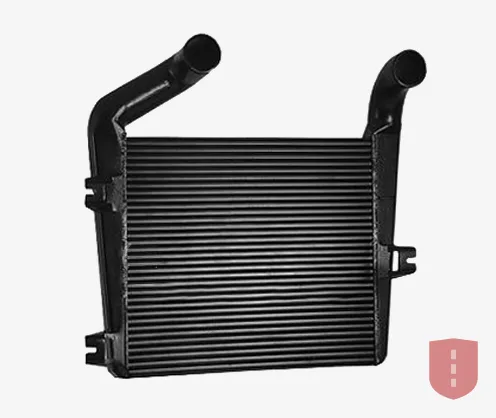

TVC0013 Volvo WH Charge Air Cooler

Volvo WH Charge Air Cooler 🔍 Click to zoom

Vehicle Fitment

1 make · 1 model

Compatible Makes

Compatible Models

WH

About This Part

TVC0013 is a crossflow charge air cooler for the Volvo WH.

The core measures 28.5" high by 25.5" wide, 2.8125" deep. It has a 4" inlet at the left and a 4" outlet at the right. There is no integral oil cooler and no filler neck.

It replaces 24 OEM and aftermarket numbers, among them VOL18803, VOL18803N, VOL18803R. Searching any one of them will find this part.

On charge air coolers the inlet and outlet positions and the boot diameters matter as much as the core. A cooler that fits the opening but presents its connections on the wrong side will not plumb up.

Specifications

Measure your existing unit against these dimensions to confirm fitment before ordering.

Core Height 28.5"
Core Width 25.5"
Core Depth 2.8125"
Orientation Crossflow
Filler Neck None
Inlet 4" (Left)
Outlet 4" (Right)
Oil Cooler None

OEM / Cross-Reference Numbers

This part cross-references with the following OEM part numbers. Use any of these numbers to confirm fitment.

VOL18803VOL18803NVOL18803RBTC1121BT11211121CAC121WSR1121SCSI222105CA2105222105441164WGM31CVODAC31CDURVODAC31CDHTVO31CDHT31C374131CFLX010618SRMVOL31C44VOL31C1030029219013205817118

Note: Prices are not listed for this part. Contact us with your part number and truck details — we'll confirm availability and quote a price the same day.

Request a Quote

TVC0013

Prices quoted same day. Available Canada-wide.

Request Quote for This Part
Same-day quote
Canada-wide delivery
OEM-spec fitment guaranteed
