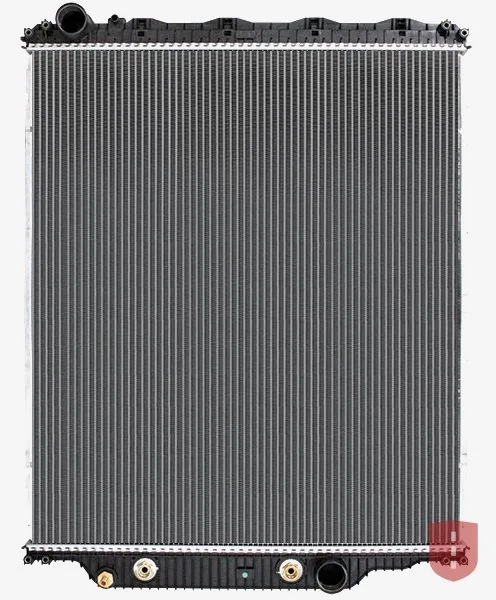

TMR0008 is a downflow radiator for the Mack CHN, CHU, GU Granite, model years 2008 to 2013.
The core measures 39.125" high by 34.375" wide, 2" deep. It has a 2.5" inlet at the left and a 2.5" outlet at the right. The unit carries an oil cooler at the bottom and no filler neck.
It replaces 147 OEM and aftermarket numbers, among them MAC24, 21000732, 21000733. Searching any one of them will find this part.
On radiators the inlet and outlet positions, and whether the unit carries an oil cooler, decide interchangeability more often than core size does. Two radiators with identical cores are frequently not interchangeable.
