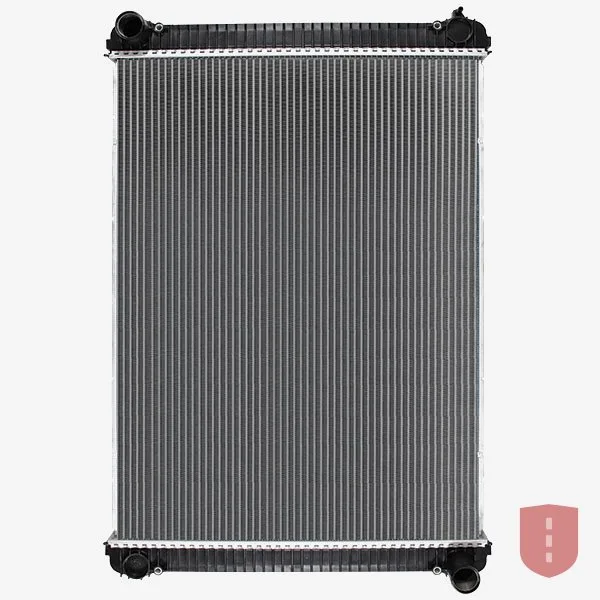

TFR0017 Freightliner Business Class M2-106 Radiator (2003–2007)

Year Coverage

TFR0017 is a downflow radiator for the Freightliner Business Class M2-106, model years 2003 to 2007.

The core measures 36" high by 26.875" wide, 2" deep. It has a 2" inlet at the top left and a 2" outlet at the bottom right. There is no integral oil cooler and no filler neck.

It replaces 19 OEM and aftermarket numbers, among them FRE110, BHTD5967, D5967. Searching any one of them will find this part.

On radiators the inlet and outlet positions, and whether the unit carries an oil cooler, decide interchangeability more often than core size does. Two radiators with identical cores are frequently not interchangeable.
